To Maximize
Machine Performance in Harsh Environments
|
||
 |

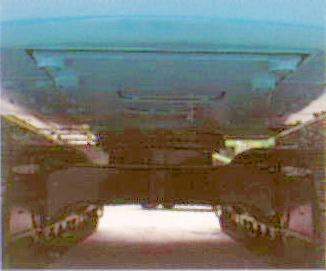

●Full
Undercover to Reinforce Main Carriage A 6 mm steel undercover covers the entire bottom surface of the upper frame, protecting the engine, pumps and other components from rock fragments, boulders, iron bar, and other debris. |
|
 |

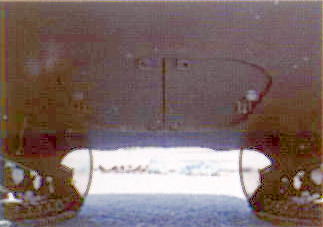

●Lower
Undercover A 9 mm steel cover protects the lower frame from rocks, steel bar, and other materials that could damage hydraulic piping and other components. |
|
 |

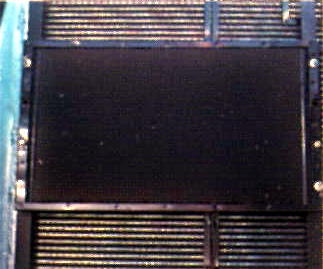

●Dust
Net In demolition configuration, the dust net protects not only the oil cooler and radiator, but also the condenser and intercooler, thus preventing clogging that can reduce heat exchange functions. |
|
 |
Reinforced

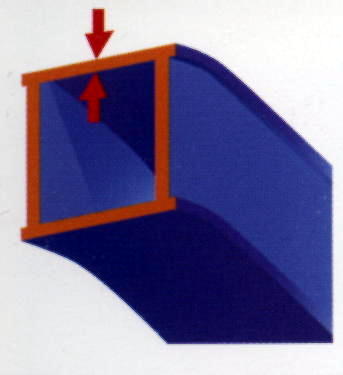

HD Boom and HD Arm The steel plate used in the SK480 is one grade thicker overall. Bushings have also been added to the boom top. In addition, the rock guard and steel bars are standardized to the underneath of the arm top. |
|
 |

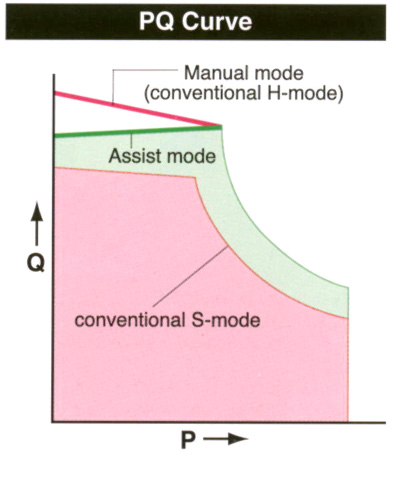

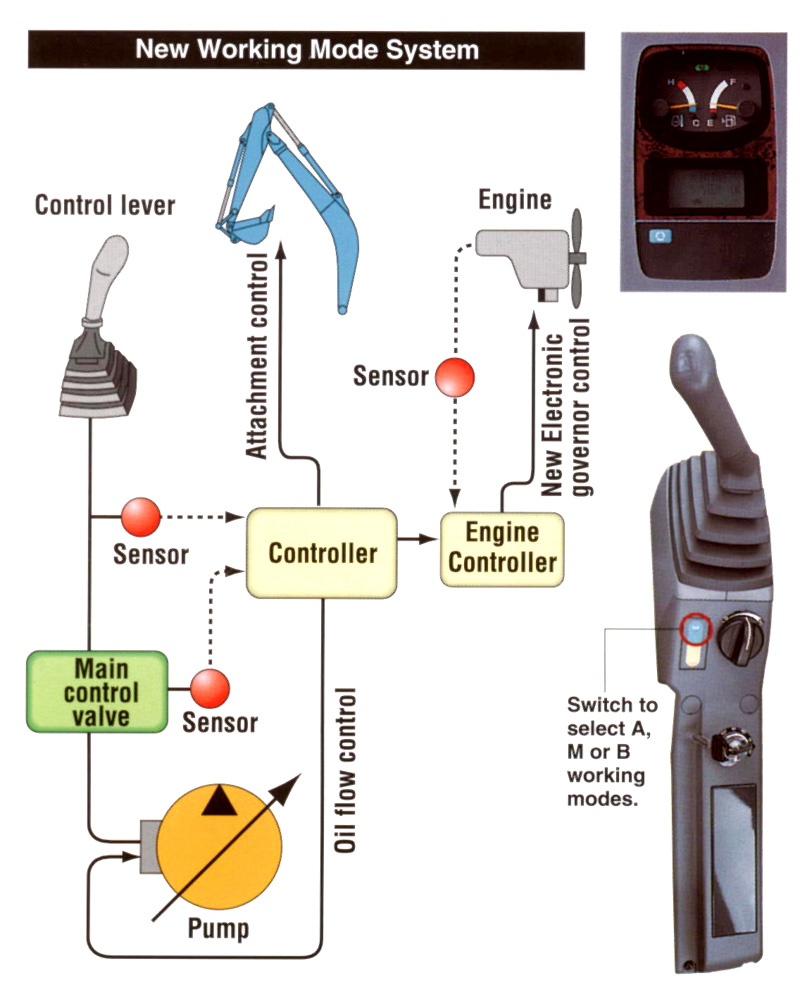

Assist Mode Features Matched with electronic direct governor control, Assist mode lowers the engine rpm when the workload comes to high idle. Assist mode works to reduce noise and fuel consumption, thus reduce emission for better environment. |
 |
|
 |
