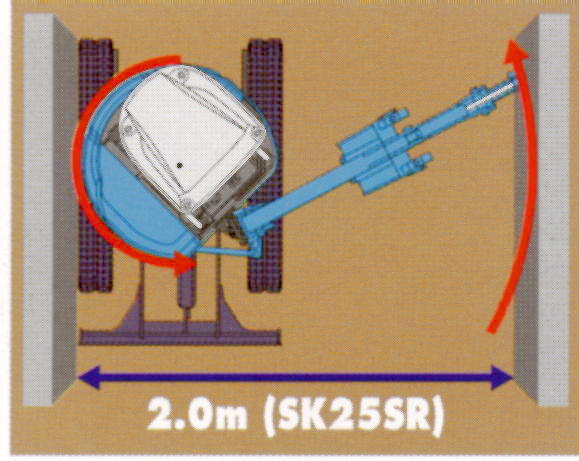

Easy Operation in Narrow Streets

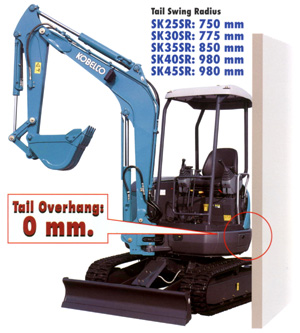

The SK25SR occupies just 1,980 mm when swinging 180°,the SK30SR just 2,225mm, the SK35SR just 2,390mm,the SK40SR just 2,490mm,the SK45SR just 2,530mm.

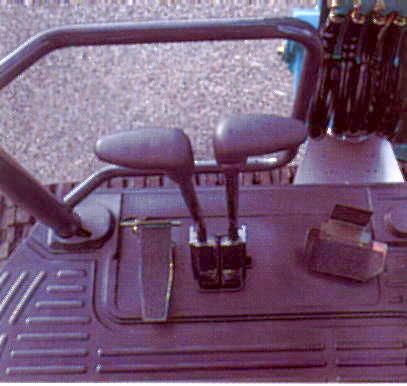

Optimal Boom Swing
*The extended swing on the left makes operation easier on the side that affords the best view on the bucket.
Handles Special Attachments with Ease

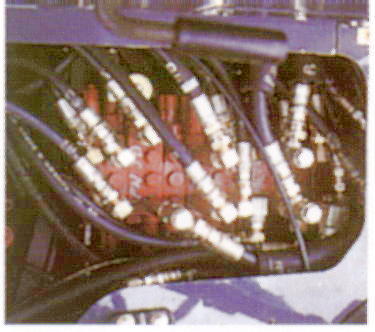

The newly designed control valve features a built-in service valve, and the attachment has a tapped block as standard equipment that accommodates additional hydraulic piping,
SR Series Mini Excavator
Bucket capacity
(m3)
SAE heaped
Engine
PS SAE
at rpm
Operaring
weight
(kg)
SK15SR
0.044
14.5/2350
1650
SK20SR
0.066
14.5/2350
1970
SK25SR
0.08
21.2/2350
2630
SK30SR
0.09
23/2350
2980
SK35SR
0.11
24.0/2400
3420
SK40SR
0.13
30.5/2400
3970
SK45SR
0.14
37/2200
4660
